Product Overview

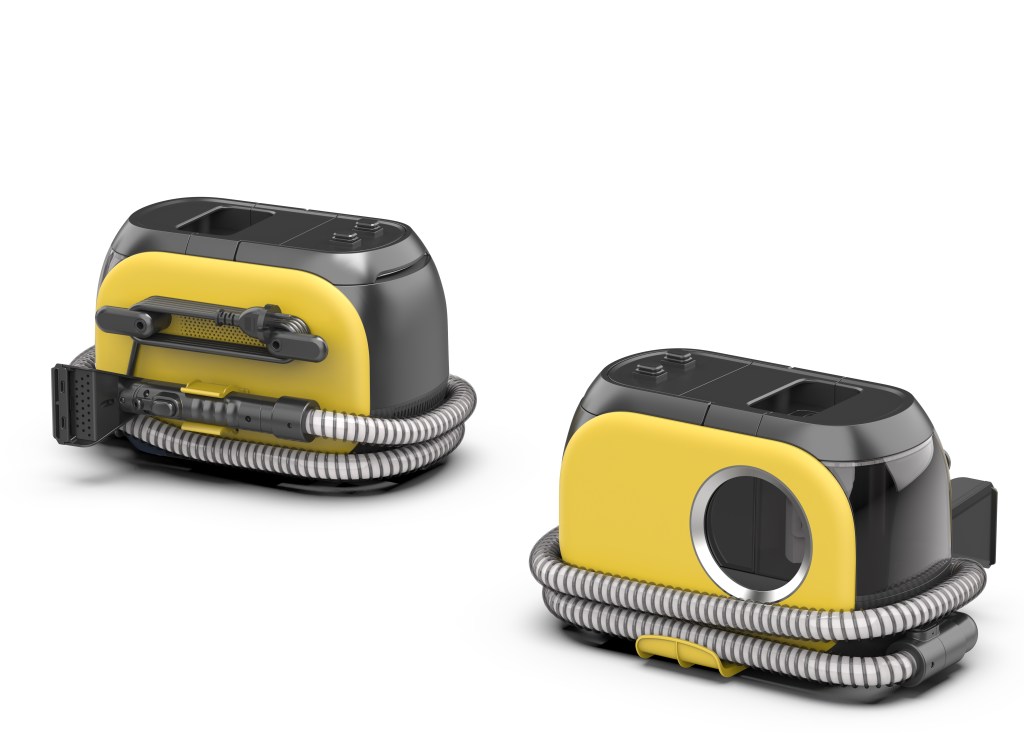

The SM-2409 is a compact and efficient fabric cleaner designed for deep cleaning of upholstery, carpets, and similar surfaces. Powered by a 400W motor, it delivers a strong 12 kPa vacuum while maintaining low noise levels (≤80 dB).
Technical Specifications
| Parameter | 220V / 230V Version | 100–127V Version |
|---|---|---|
| Rated Voltage [V] | 220V / 230V | 100–127V |
| Rated Power [W] | 400 | 400 |
| Maximum Vacuum Degree [kPa] | 12 | 12 |
| Noise [dB] | ≤80 | ≤80 |
| Lifetime [h] | ≥250 | ≥250 |
| Dust Collecting Volume [L] | 1.2 | 1.2 |
| Absorptive Volume [L] | 0.7 | 0.7 |
| Power Cable Specification | 0.75mm² × 2, 3m | SVT 18, 3m |
| Total Cable Length [m] | 5 | 5 |
| Exposed Cable Length [m] | 4.5 | 4.5 |
| Plug Certification | CCC / VDE | UL |
Key Features
Customizable Accessories: Optional parts available upon request
High-Efficiency Suction: 400W motor generating up to 12 kPa vacuum power for effective dust and liquid removal
Quiet Operation: Operates at ≤80 dB for comfortable indoor use

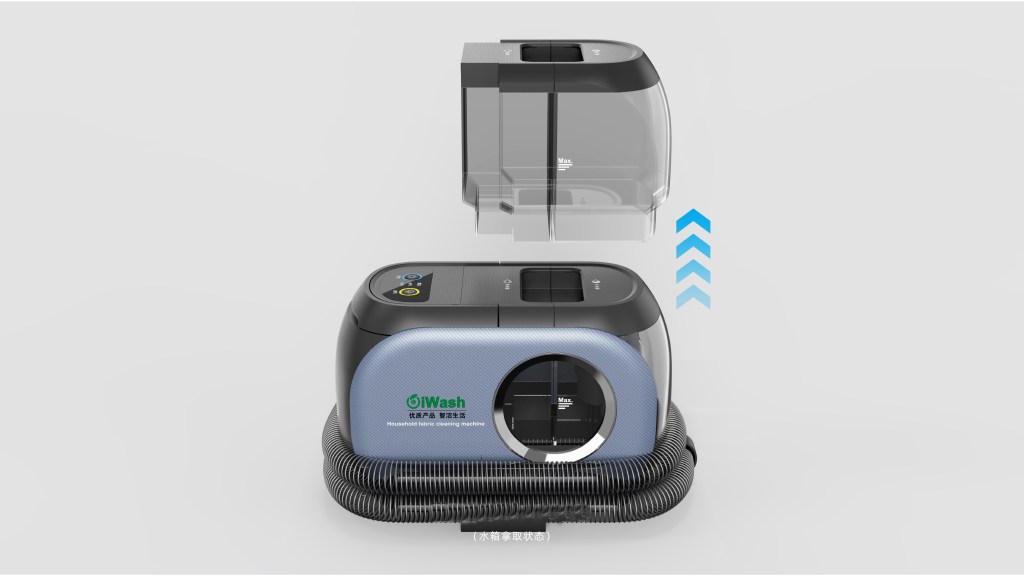

Dual Functionality: 1.2L dust tank and 0.7L liquid absorption capacity—ideal for both dry and wet cleaning
Certified Safety: Plug options with CCC, VDE, or UL certification depending on region
Durable Design: Rated lifetime of ≥250 hours
Convenient Storage: Includes body-mounted storage bracket
Packing & Logistics
| Item | 220V / 230V Version | 100–127V Version |
|---|---|---|
| Product Dimensions (L×W×H) [mm] | 360 × 172 × 230 | 360 × 172 × 230 |
| Packaging Dimensions (L×W×H) [mm] | 400 × 190 × 370 (polyfoam insert) | 410 × 195 × 330 (cardboard insert) |
| Net/Gross Weight [kg] | 3.8 / 5.1 | 3.8 / 5.1 |
| Loading Qty (20’ container) | 950 pcs | 1070 pcs |
| Loading Qty (40’ container) | 1965 pcs | 2260 pcs |
| Loading Qty (40’HQ) | 2295 pcs | 2580 pcs |
Standard Accessories
Hose Assembly: Wired hose, 1.6 meters
Small Brush Set: 28cm bristle brush + small bristle brush
Other: Storage bracket integrated on the unit body
