Product Overview

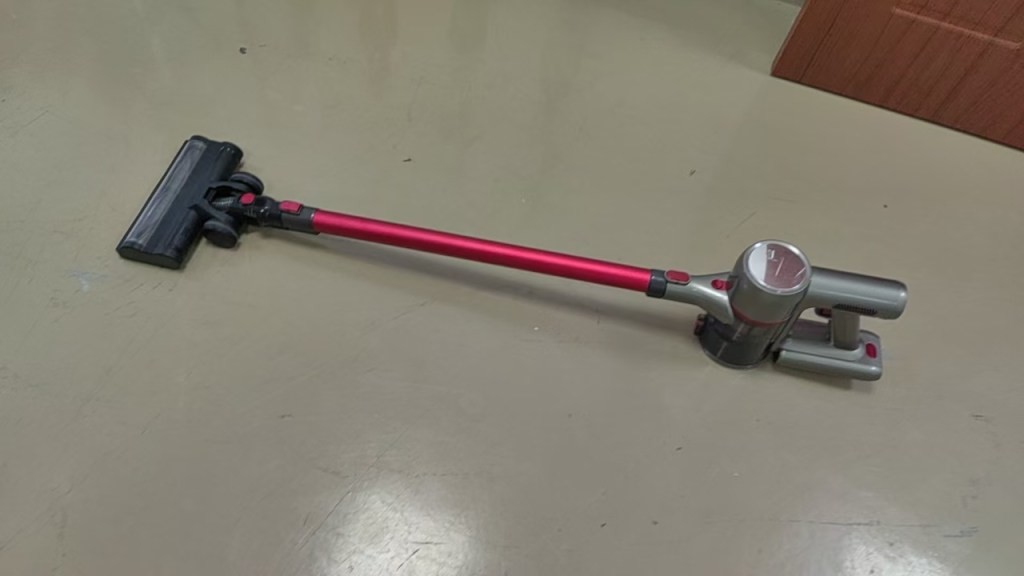

The SM-2402 is a lightweight cordless handheld vacuum cleaner equipped with a 22.2V 200W DC motor and multi-stage filtration system. With multiple brush head options and a 2200mAh lithium battery, it is ideal for OEM/ODM clients seeking flexible and high-efficiency cleaning tools.

Key Features

• Powerful 200W motor (DC 22.2V)
• Suction vacuum: ≥18KPa (high) / ≥13KPa (low)
• Multi-stage filtration: Metal mesh + cyclone + HEPA
• Transparent ABS dust cup (0.5L capacity)
• Battery life: ≥20 mins (high) / ≥35 mins (low)
• Charging time: 4–5 hours
• Smart overcurrent protection for floor brush
• Optional accessories: multiple floor brushes & extension tubes
• OEM-ready: customizable color, logo, accessories

Specifications

Item	Details
Model	SM-2402
Motor Power	200W DC (22.2V)
Battery Type	18650 lithium, 2200mAh
Suction Vacuum	≥18KPa (high) / ≥13KPa (low)
Dust Cup Capacity	0.5L
Noise Level	≤78dB
Charging Time	4–5 hours
Runtime	≥20 min (high) / ≥35 min (low)
Speed Control	Button-based 2-speed
Filtration System	Metal mesh + Cyclone + HEPA
Body Material	ABS injection molding
Product Size	430×115×127 mm (main unit)
Full Assembly Size	1070×240×127 mm (with floor brush & tube)
Net Weight	1.0 kg
Gross Weight	1.5 kg
Charging Adapter	Input: 100–240V / Output: DC27V 0.5A
Certification	CCC / GS (charger)

Packing & Logistics

Item	Details
Packing	1 unit per color box
Gift Box Weight	1.5 kg
Unit Weight	1.0 kg
Gift Box Size	(TBD, please confirm)
Load QTY / 20′ / 40′	(TBD, based on box size)
Country of Origin	China
CHINA GSP FORM A	Yes

Available Configurations (OEM Options)

Component	Options & Upgrade Prices
Floor Brush	Basic 3-series, Double Roller, 5-series
Extension Tube	Conductive straight, Telescopic, Foldable
Extras	Long crevice nozzle, 2-in-1 brush head (included)

*Standard accessory kit includes: main unit, tube, electric floor brush, charger, long crevice tool, 2-in-1 brush, manual & packaging.
